Joinery Sled with Rack-It

The Woodpeckers Joinery Sled is a precision jig system that replaces multiple shop‑made table saw and router table jigs with a single adjustable platform. Designed for woodworkers who want controlled joinery setups without rebuilding fixtures every time angles or stock sizes change.

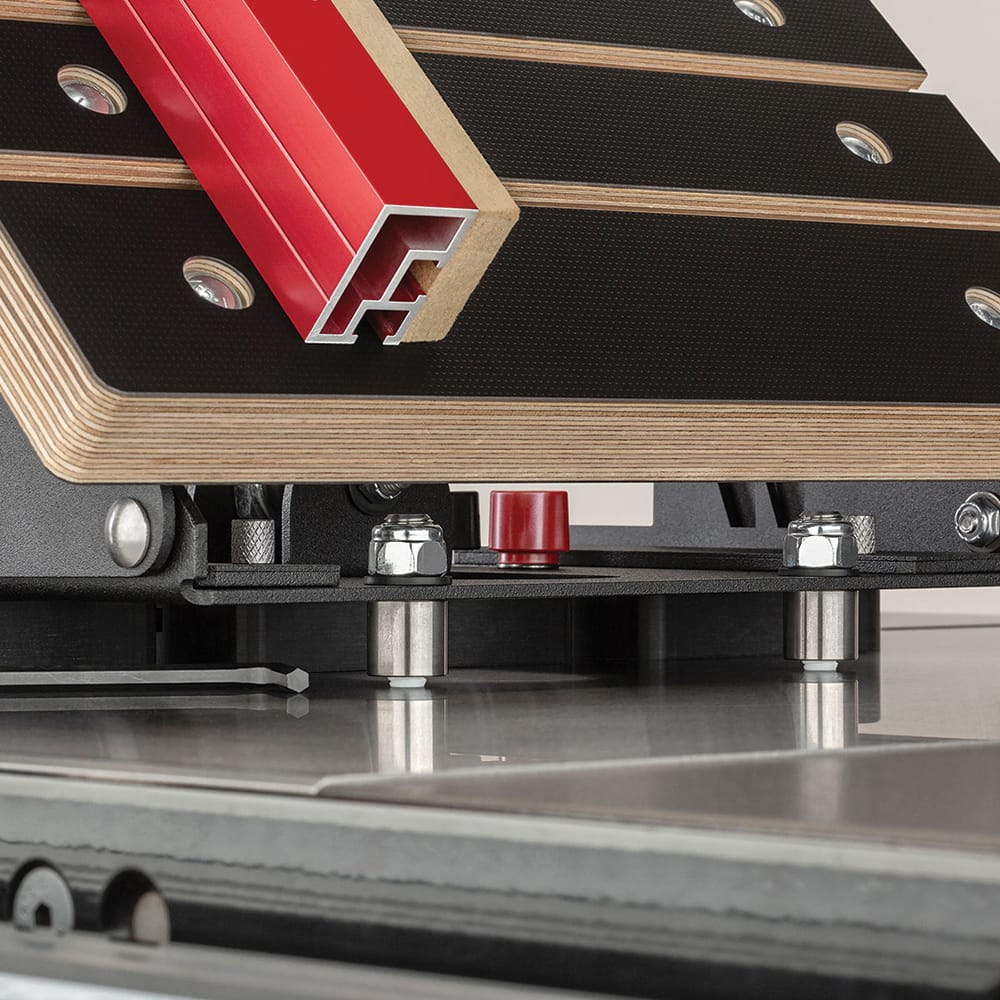

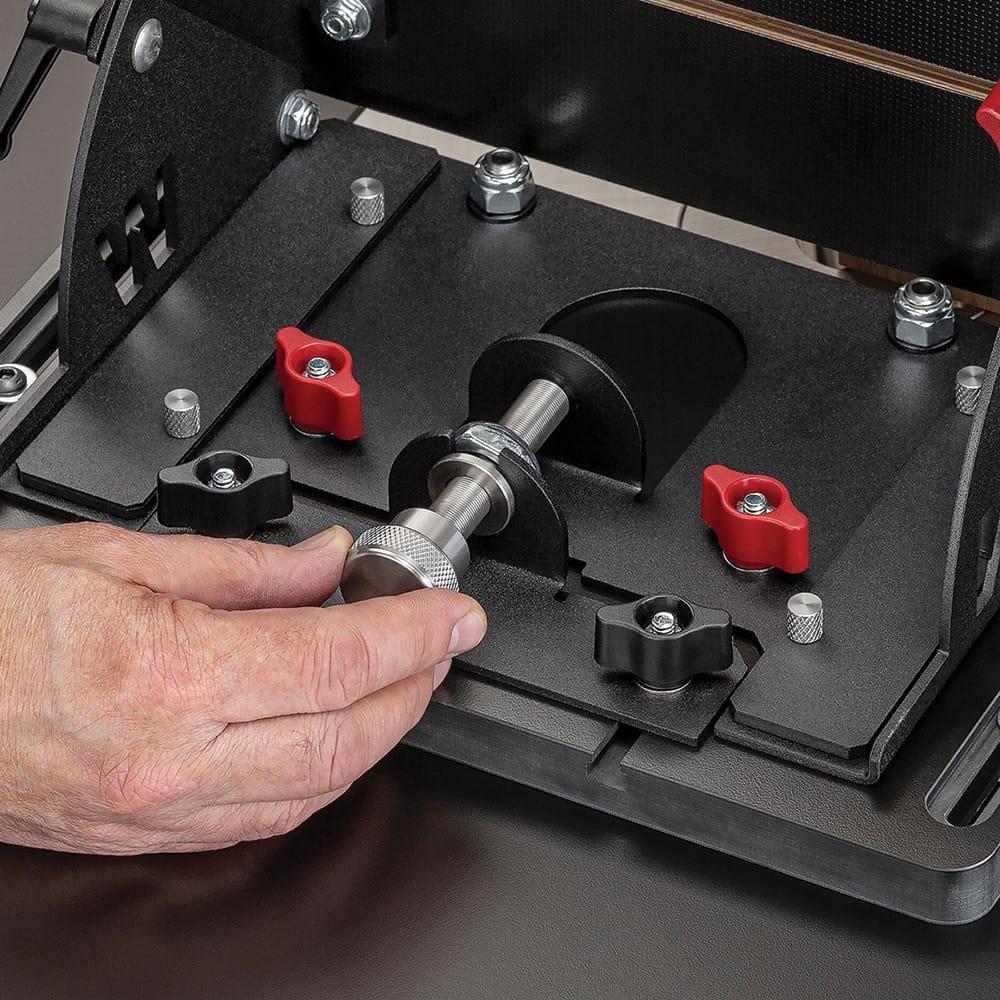

The base plate offers a wide adjustment range to fit most table saws and router tables, with additional travel provided by the upper adjustable base. Leveling feet under the adjustable base prevent racking when the sled is extended, keeping the work surface stable across the full range of movement. Once positioned, the sled's bearing‑guided micro‑adjuster allows fine control, moving the work table in very small increments to dial in tight‑fitting joints.

The clamping table locks at 90° for standard joinery, then pivots on a quadrant to lock anywhere from 44° to 91° when angled work is required. This provides controlled support for angled joinery without relying on freehand cuts. The fence tilts independently to handle compound angles, eliminating the need for dedicated jigs. Three T‑track grooves in the table allow flexible fence positioning and secure material clamping. In addition to the included pivot clamps, the tracks accept standard track clamps for thicker stock or repeat runs.

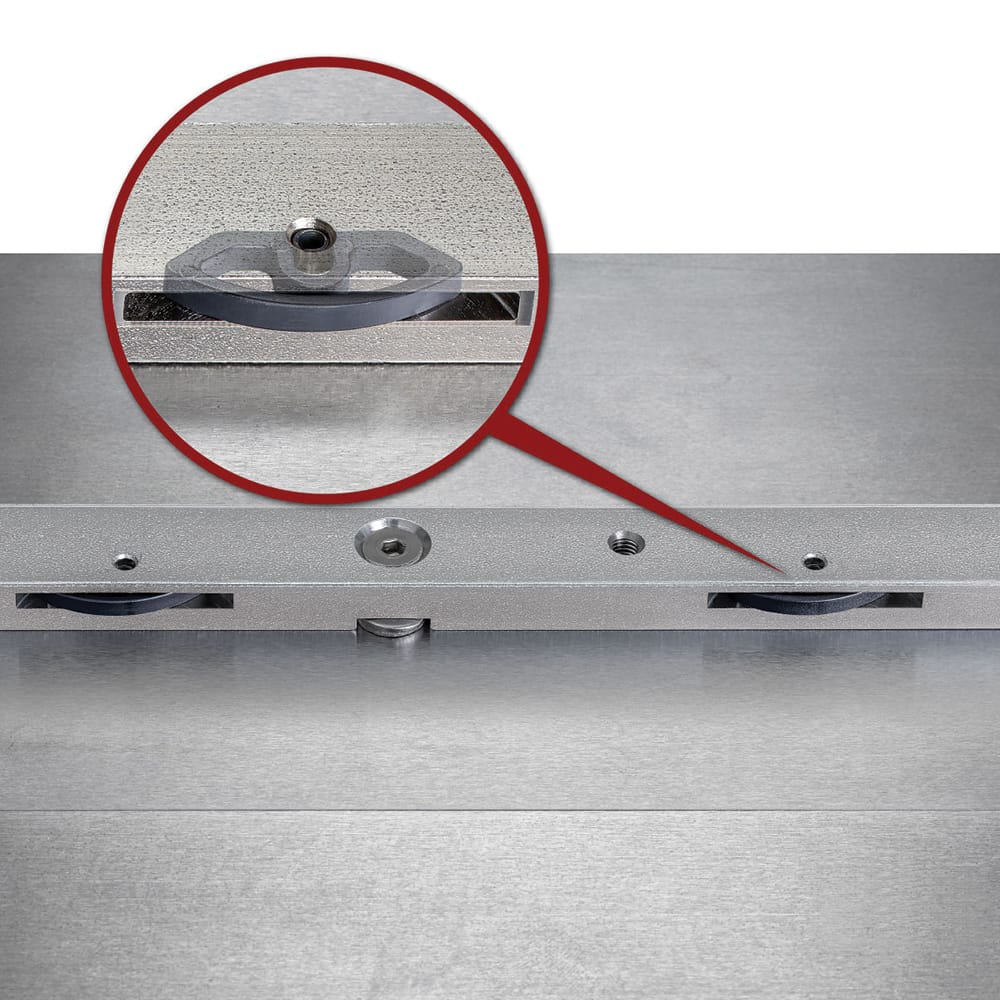

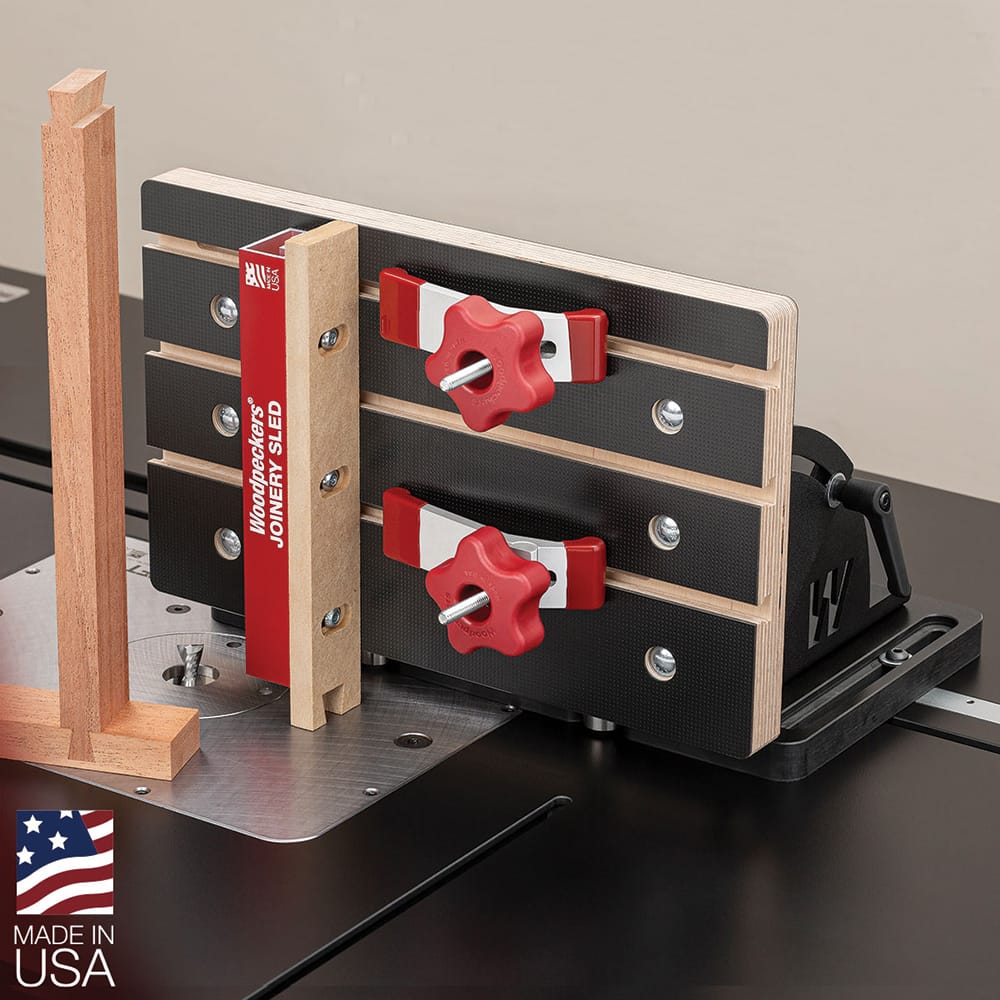

A sacrificial fence face supports the work as the blade or bit exits and can be replaced easily when worn. The sled runs in a miter gauge slot, extending its use beyond the table saw to the router table. A wall‑mountable Rack‑It storage system is included to keep the sled visible, protected and ready for use.

Features:

• Replaces multiple table saw and router table joinery jigs

• Fits most table saws and router tables

• Upper adjustable base adds extended travel capacity

• Leveling feet prevent racking at full extension

• Bearing‑guided micro‑adjuster for fine positioning

• Clamping table locks from 44° to 91°

• Tilting fence supports compound angle cuts

• Three T‑track grooves for fence and clamp positioning

• Includes pivot clamps and sacrificial fence face

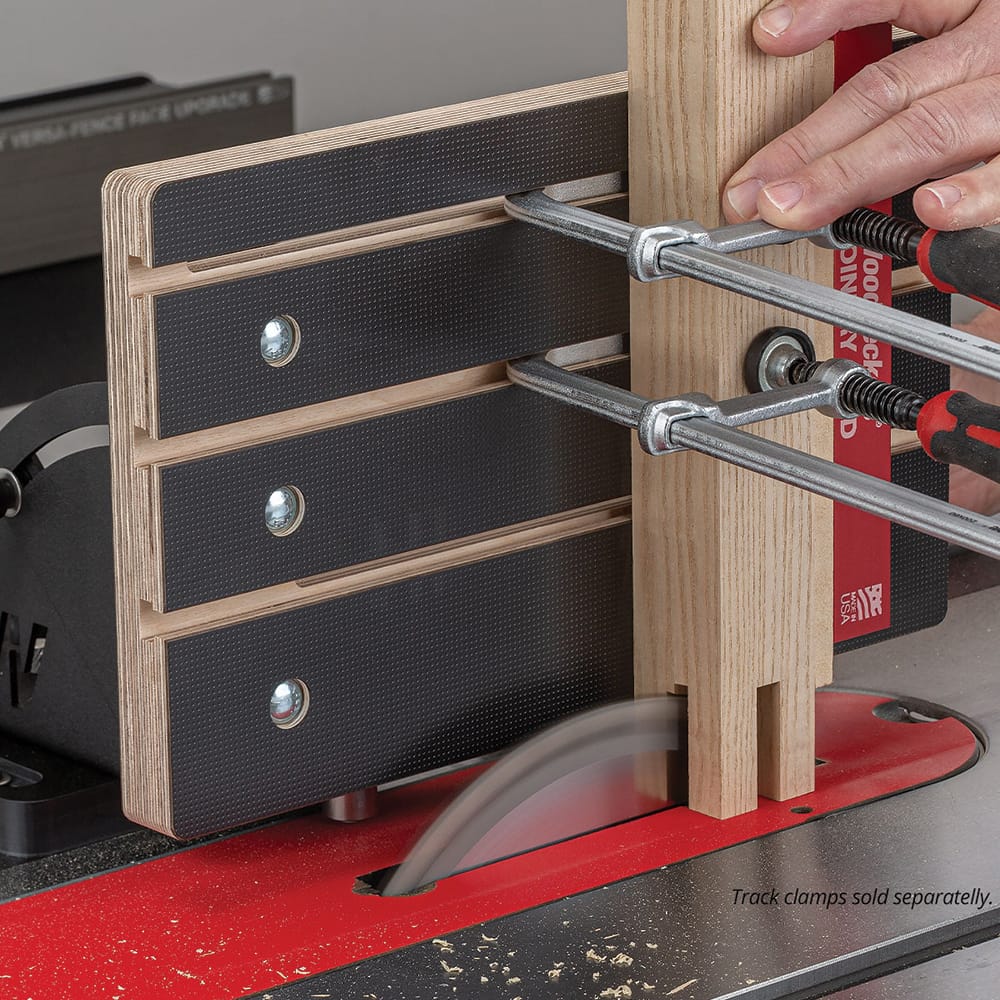

• Compatible with standard track clamps

• Includes wall‑mountable Rack‑It storage system

Specifications:

• Tool Compatibility: Table Saw/Router Table

• Guidance System: Miter Bar

• Base Adjustment Range: 5‑1/2"

• Upper Base Travel: 3‑1/2"

• Total Extension: 9"

• Table Tilt Range: 44°–91°

• Clamping Grooves: 3 1/4" T‑track

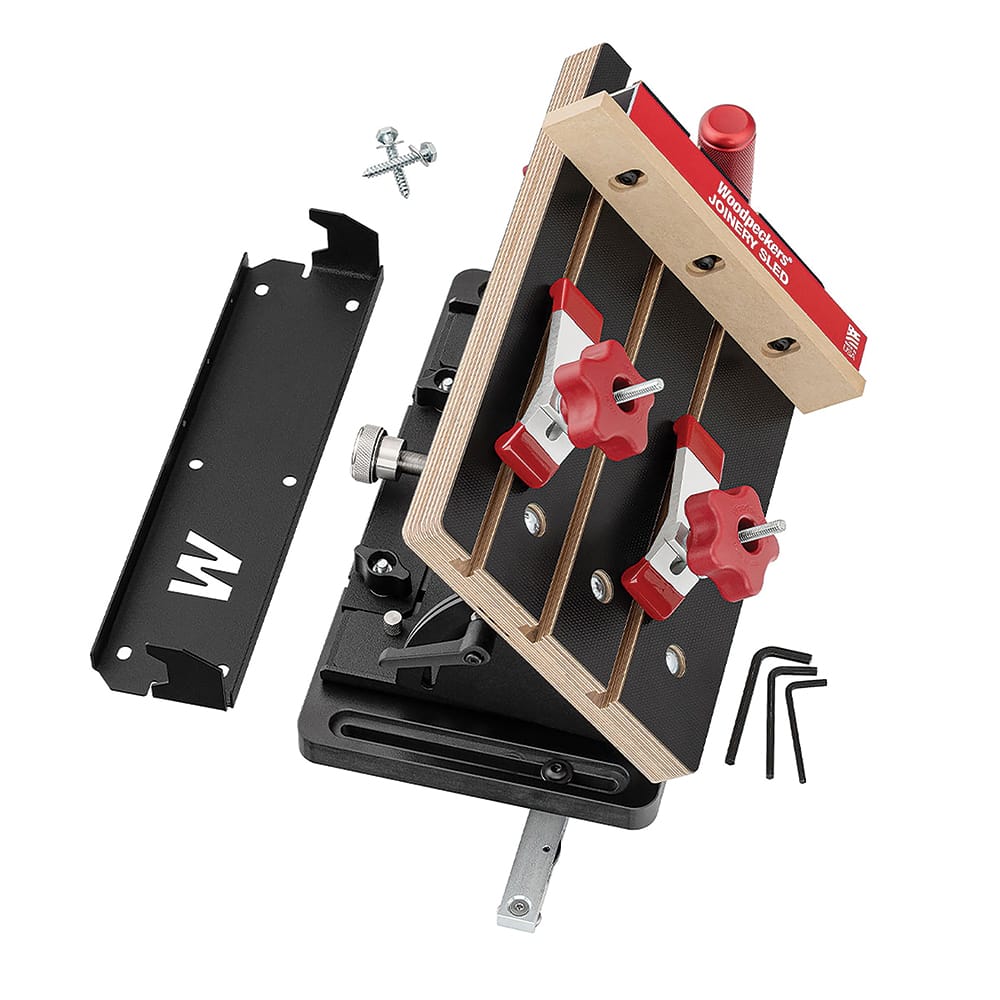

What's Included:

• (1) Woodpeckers Joiner Sled

• (1) Set of hex keys (5/32", 1/8", 3/16")

• (1) Hardware Pack

• (1) Owner's Manual
